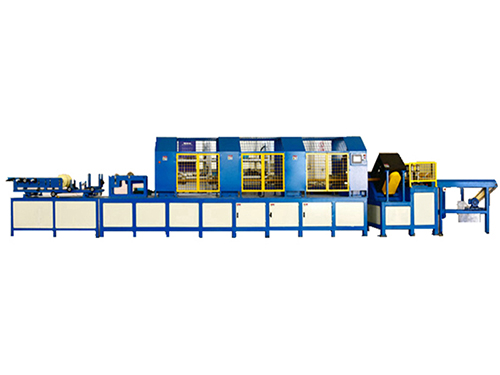

紙護角機 Paper Angle protector machine
技術參數 | |
紙護角規格 | 邊長25-120(等邊及不等邊) |
生產速度 | 0-30m/min |
主機功率 | 7.5kw |
控制系統 | PLC和伺服控制 |
速度控制 | 變頻控制 |
原材料 | 面紙 ???50g-200g |
芯紙 砂管紙300g-420g | |
切割方式 | 液壓切割、伺服跟蹤切斷或飛剪系統 |
操作人數 | 1-2人 |
PLC | 臺達 |
觸控屏 | 臺達 |
斷路器 | 正泰 |
信號元件 | 飛凌 |
生產線外形尺寸 | 26000×1350×1880mm |
生產線毛重 | 6噸 |
Technical parameter | |
Paper Angle protector specifications | Length 25-120mm(Equilateral or unequal) |
Production speed | 0-30m/min |
The host power | 7.5kw |
The control system | PLC and servo motor control |
Speed control | Frequency control |
The raw materials | The surface of the paper 150g-200g |
The core of paper 300g-420g | |
Cutting way | Hydraulic cutting, servo tracking cut or flying shear system |
The number of operations | 1-2 person |
PLC | DELTA |
Touching screen | DELTA |
The circuit breaker | CHNT |
Signal components | FEILIN |
Production line size | 26000×1350×1880mm |
Production line weight | 6000KG |
